Why Do You Need a Capillary Tube?
Let us discover what it is, how it is utilized, and why it cannot be avoided in the majority of sectors by the capillary tube supplier.

If we consider fluid control and precision applications in engineering—air conditioning, refrigeration, or medical equipment—the capillary tube is quite possibly the most efficient but simplest mechanism. It is indeed perhaps only a small, thin pipe but is irresistibly crucial to the fluid operation of some devices and processes. Thus, why will you need a capillary tube? Let us discover what it is, how it is utilized, and why it cannot be avoided in the majority of sectors by the Capillary Tube Supplier.
What Is a Capillary Tube?

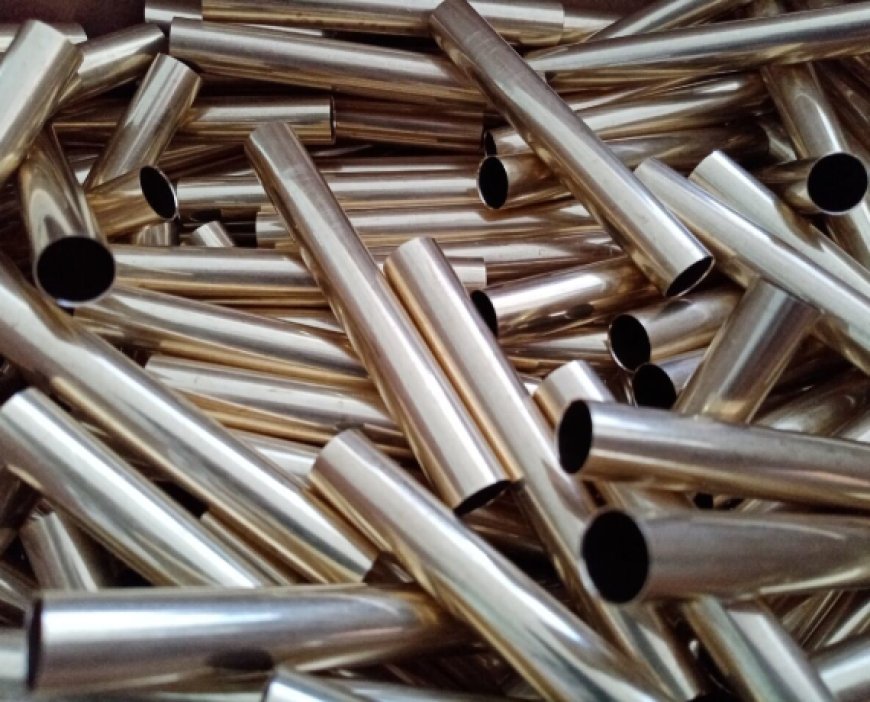

Capillary tube is a tube of some diameter and tube-like form, usually metal (usually copper or stainless steel) or glass, as need dictates. Its internal bore is extremely small—usually 0.5 mm to 2.5 mm—and possibly a few centimetres or a few meters in length.
It is not randomly small. It is required in the sense that operation of a capillary tube is grounded upon fluid dynamics theory and pressure drop. Resistance is felt in flowing through a capillary tube in the sense that the tube is infinitesimally small in radius; therefore, pressure drops. The very simple process is employed in regulating fluid or gas flow within systems.
Applications of Capillary Tubes
Capillary tubes are a valued product in the majority of the industrial market because they provide reliable flow and pressure control. They are applied in one of the most competitive markets, as indicated below:
1. Heating, Ventilation, and Air Conditioning (HVAC) Systems
Capillary tubes are used extensively in cooling appliances such as household refrigerators, freezers, water coolers, and air conditioners. The tube is used as an expansion device in all these appliances.
Role: Capillary tube is employed to provide the interface between the condenser outlet and evaporator inlet. It creates a pressure drop, which will be utilized for transforming the high-pressure liquid refrigerant into a low-pressure and low-temperature liquid-gas mixture before entering the evaporator.
Why It's Required: It does not necessarily require complicated expansion valves and therefore keeps the system uncomplicated and inexpensive. Its uniform internal diameter allows it to provide uniform performance, as long as the system load is fairly constant.
2. Medical Equipment
Capillary tubes are utilized in some diagnostic and therapeutic applications of medical science:
- Blood Collection: Capillary tubes of thin glass are employed for collecting a small amount of blood for hematologic examination.
- IV Drip Regulators: Some portable IV and infusion pumps utilize capillary tubes as a device for controlling the amount of fluid entering into the patient's vein.
- Why It's Needed: There has to be flow tightly controlled and by design, and pressure-driven flow resistance and capillary action are ideally suited to such tubes.
3. Research and Laboratory Science:
Lab settings use capillary tubes for:
- Chromatography: Gas chromatography uses capillary columns in the separation of chemical compounds.
- Thermometers: Mercury thermometers and alcohol thermometers use capillary tubes in an attempt to get the change in temperature precise.
- Why It's Necessary: Capillary tubes regulate the fuel flow on subsequent fuel injection systems or on a few small motors.
4. Fuel Injection Systems
Subsequent fuel injection systems or in a few small motors, the fuel flow is regulated by capillary tubes.
- Why It's Necessary: Their tiny internal radius ensures uniform flow rates on which the engine's efficiency relies.
5. Pressure Measuring Instruments
Capillary tubes are used in barometers or pressure transducers to isolate and regulate pressure measurements from changing conditions.
The Science Behind How It Works
Two principles on which capillary tubes work are capillary action and pressure reduction by resistance to flow.
- Capillary Action: It is the process whereby a liquid can travel through very small pores without the application of external forces such as gravity. It occurs more in narrower tubes and is the basis on which, for instance, a thermometer works.
- Pressure Drop: When fluid or gas is flowing within a long tube of small diameter, it suffers a pressure loss at the wall of the tube. The consistent pressure drop allows engineers to offer flow control systems without mechanical assistance in the way of pumps or valves.
Use of Capillary Tubes
1. Low Cost and Simple
Capillary tubes are also among the least expensive fluid control products to be fitted. No external power source, moving parts, or sensors are required in capillary tubes. This reduces manufacturing and maintenance expenses.
2. Space Efficiency
The minimum amount of space required by capillary tubes also makes them a good option for use in small-sized devices or minimal systems such as home refrigeration and portable health equipment.
3. Maintenance is Low
Because they have no moving parts and are made of tough material such as copper, stainless steel, or borosilicate glass, capillary tubes do not need maintenance once installed.
4. Stable Performance
Capillary tubes will have stable performance if system conditions (i.e., load and temperature) are relatively stable. They are then the first choice for steady-state systems.
Limitations to Bear in Mind
Even though they have so many advantages, they also come with capillary tube limitations:
- Fixed Flow Rate: As pressure drop is functionally connected with internal diameter and length, they are not very adjustable with changing loads.
- Possibility of Clogging: Sludge or particle waste tends to readily clog very minusculely small internal diameters.
- Not Applicable to Variable Load Systems: In variable load systems where the demand is always changing, e.g., in advanced HVAC applications, higher-order expansion valves would need to be employed. But employed under correct conditions, these limitations are acceptable or, at least, inconsequential.
Conclusion
In fluid motion and heat machinery, the capillary tube is the ultimate proof that it is the little things that count. Whether maintaining your refrigerator in operation, facilitating the precision of blood testing, or aiding scientific measurement of our planet, capillary tubes work behind the scenes unobtrusively but efficiently. So why do you require a capillary tube, you ask? Because in every use where fluid flow must be regulated with precision, reliability, and ease, there may often be no finer alternative. It's the behind-the-scenes flow control workhorse—low-cost, compact, and extremely effective.
